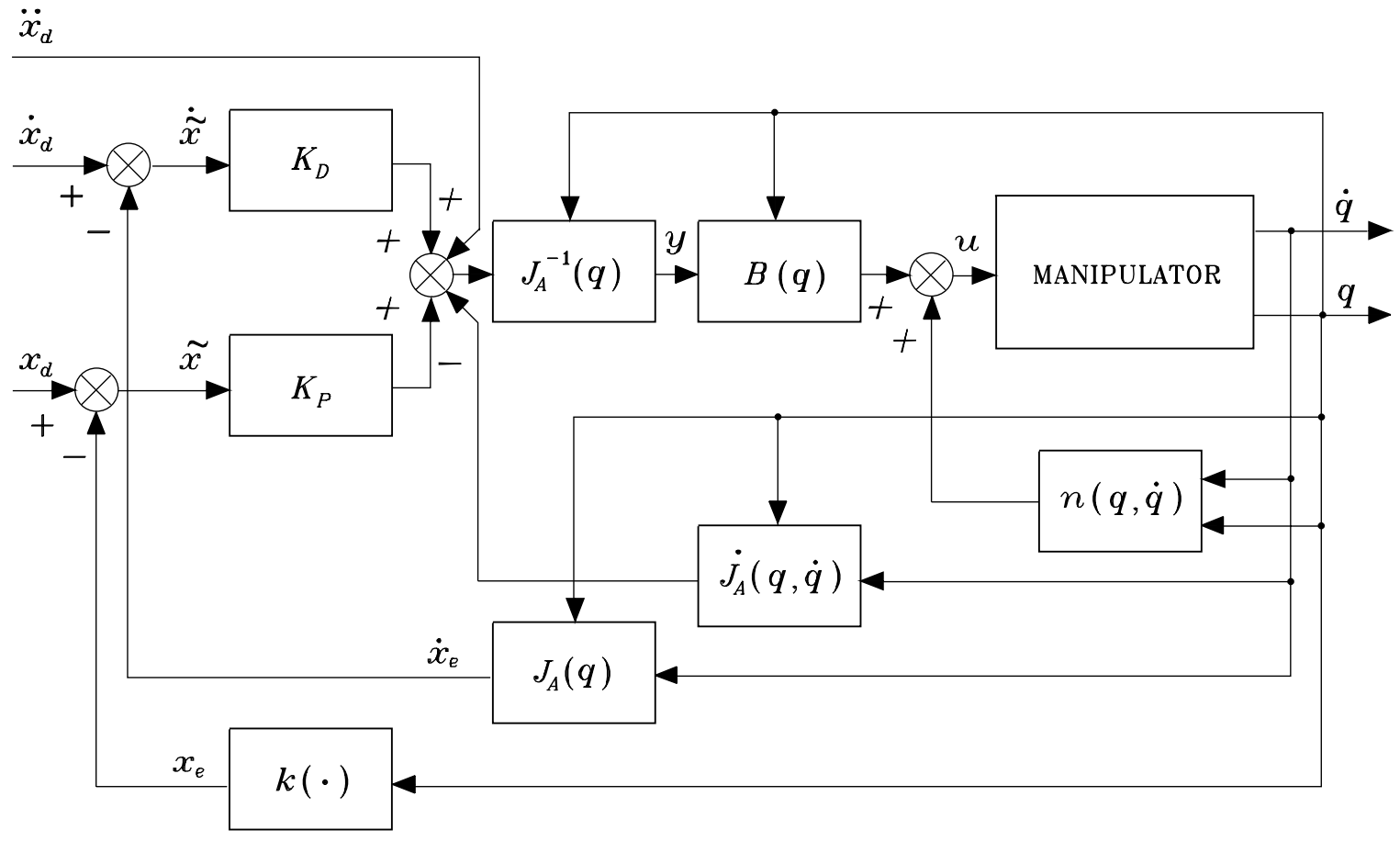

Lab Session 3: Inverse Dynamics Control

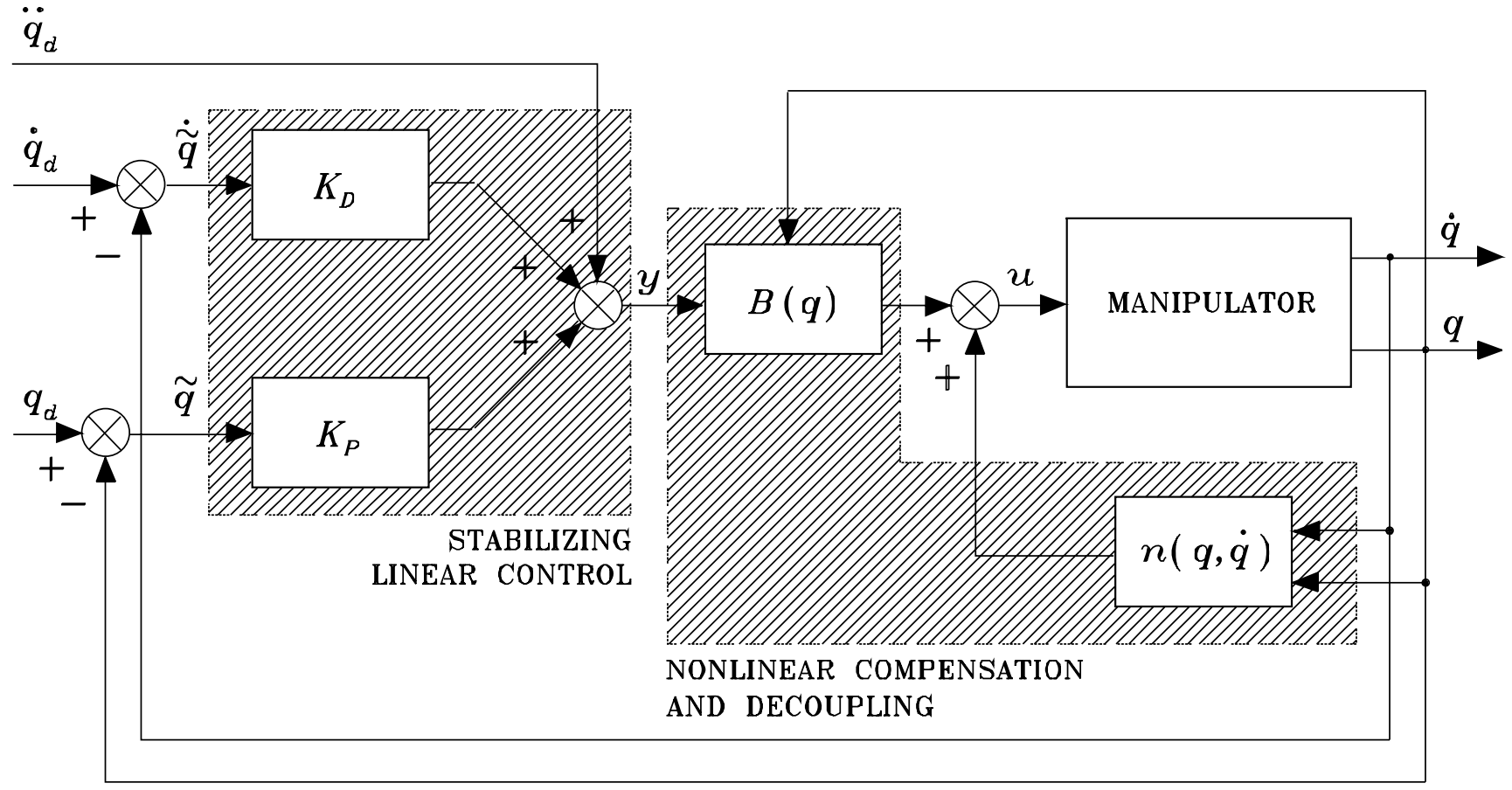

In this lab session you will learn how to implement inverse dynamics controllers to compensate the non-linear dynamics of the manipulator to let you impose a specific desired dynamic behavior of the manipulator. Note that you are expected to have finished the previous lab session as you'll need that implementation.

3.1. Gravity compensation

3.1.1. Implementation

As you could have noticed in the previous lab, the gravitational effects on the manipulator makes it to "fall". Hence, our controller should include these effects when computing the joint torques that will be commanded to the actuators. The simplest inverse dynamics controller is the gravity compensation controller that set the torques of the actuators to be equal to those produced by gravity

\[ \boldsymbol{\tau} = \mathbf{g}(\mathbf{q}) \]

To implement the gravity compensation controller you need to do the following:

  1. Create the gravity compensation node: gravity_compensation.cpp

    Show the code
    gravity_compensation.cpp
        /*

        Author: Juan M. Gandarias (http://jmgandarias.com)
        email: jmgandarias@uma.es

        This script calculates the torque to cancellate the gracvity dynamic effects

        tau = g(q)

        Inputs: desired_joint_accelerations, joint_state(joint_positions, joint_velocities)

        Output: joint_torques

        */

        #include <rclcpp/rclcpp.hpp>
        #include <sensor_msgs/msg/joint_state.hpp>
        #include <std_msgs/msg/float64_multi_array.hpp>
        #include <chrono>
        #include <Eigen/Dense>
        #include <cmath>

        class DynamicsCancellationNode : public rclcpp::Node
        {
        public:
            DynamicsCancellationNode()
                : Node("gravity_compensation_node"),
                  joint_positions_(Eigen::VectorXd::Zero(2)),
                  joint_torques_(Eigen::VectorXd::Zero(2))
            {
                // Frequency initialization
                this->declare_parameter<double>("frequency", 1000.0);

                // Dynamics parameters initialization
                this->declare_parameter<double>("m2", 1.0);
                this->declare_parameter<double>("m1", 1.0);
                this->declare_parameter<double>("l1", 1.0);
                this->declare_parameter<double>("l2", 1.0);
                this->declare_parameter<double>("b1", 1.0);
                this->declare_parameter<double>("b2", 1.0);
                this->declare_parameter<double>("g", 9.81);
                this->declare_parameter<std::vector<double>>("q0", {0, 0});

                // Get frequency [Hz] parameter and compute period [s]
                double frequency = this->get_parameter("frequency").as_double();

                // Get dynamic parameters
                m1_ = this->get_parameter("m1").as_double();
                m2_ = this->get_parameter("m2").as_double();
                l1_ = this->get_parameter("l1").as_double();
                l2_ = this->get_parameter("l2").as_double();
                g_ = this->get_parameter("g").as_double();
                b1_ = this->get_parameter("b1").as_double();
                b2_ = this->get_parameter("b2").as_double();

                // Set initial joint state
                joint_positions_ = Eigen::VectorXd::Map(this->get_parameter("q0").as_double_array().data(), 2);

                // Create subscription to joint_torques
                subscription_joint_states_ = this->create_subscription<sensor_msgs::msg::JointState>(
                    "joint_states", 1, std::bind(&DynamicsCancellationNode::joint_states_callback, this, std::placeholders::_1));

                // Create publishers for joint torque
                publisher_joint_torques_ = this->create_publisher<std_msgs::msg::Float64MultiArray>("joint_torques", 1);

                // Set the timer callback at a period (in milliseconds, multiply it by 1000)
                timer_ = this->create_wall_timer(
                    std::chrono::milliseconds(static_cast<int>(1000 / frequency)), std::bind(&DynamicsCancellationNode::timer_callback, this));
            }

            // Timer callback - when there is a timer callback, computes the new joint acceleration, velocity and position and publishes them
            void timer_callback()
            {
                // Calculate torque to cancel the dynamic effects
                joint_torques_ = gravity_compensation();

                // Publish data
                publish_data();
            }

        private:
            // joint_states subscription callback - when a new message arrives, updates the dynamics cancellation and publishes teh joint_torques_
            void joint_states_callback(const sensor_msgs::msg::JointState::SharedPtr msg)
            {

                // Assuming the joint names are "joint_1" and "joint_2"
                auto joint1_index = std::find(msg->name.begin(), msg->name.end(), "joint_1") - msg->name.begin();
                auto joint2_index = std::find(msg->name.begin(), msg->name.end(), "joint_2") - msg->name.begin();

                if (static_cast<std::vector<std::string>::size_type>(joint1_index) < msg->name.size() &&
                    static_cast<std::vector<std::string>::size_type>(joint2_index) < msg->name.size())
                {
                    joint_positions_(0) = msg->position[joint1_index];
                    joint_positions_(1) = msg->position[joint2_index];
                }
            }

            // Method to calculate the desired joint torques
            Eigen::VectorXd gravity_compensation()
            {
                // Placeholder for calculate the commanded torques
                // Calculate the control torque to compensate only for gravity effects: tau = g(q)

                // Calculate g_vect

                // // Calculate desired torque
                Eigen::VectorXd torque(2);
                torque << 0, 0;

                return torque;
            }

            // Method to publish the joint data
            void publish_data()
            {
                // publish joint torque
                auto joint_torques_msg = std_msgs::msg::Float64MultiArray();
                joint_torques_msg.data.assign(joint_torques_.data(), joint_torques_.data() + joint_torques_.size());
                publisher_joint_torques_->publish(joint_torques_msg);
            }

            // Member variables
            // Publishers and subscribers
            rclcpp::Subscription<sensor_msgs::msg::JointState>::SharedPtr subscription_joint_states_;
            rclcpp::Publisher<std_msgs::msg::Float64MultiArray>::SharedPtr publisher_joint_torques_;
            rclcpp::TimerBase::SharedPtr timer_;

            // Joint variables
            Eigen::VectorXd joint_positions_;
            Eigen::VectorXd joint_torques_;

            // dynamic parameters variables
            double m1_;
            double m2_;
            double l1_;
            double l2_;
            double b1_;
            double b2_;
            double g_;

        };

        int main(int argc, char *argv[])
        {
            rclcpp::init(argc, argv);
            auto node = std::make_shared<DynamicsCancellationNode>();
            rclcpp::spin(node);
            rclcpp::shutdown();
            return 0;
        }


  2. You need to program the method gravity_compensation() to calculate de desired torques.

    // Method to calculate the desired joint torques
    Eigen::VectorXd gravity_compensation()
    {
        // Placeholder for calculate the commanded torques
        // Calculate the control torque to compensate only for gravity effects: tau = g(q)

        // Calculate g_vect

        // // Calculate desired torque
        Eigen::VectorXd torque(2);
        torque << 0, 0;

        return torque;
    }

  3. Create the gravity_compensation_launch.py file (you need to do this in order to get the dynamic pameters from the config file). You don't need to do any modification in this file, just include it inside the launch folder.
    Show the code
    gravity_compensation_launch.py
        import os
        from launch import LaunchDescription
        from launch_ros.actions import Node
        from ament_index_python.packages import get_package_share_directory

        def generate_launch_description():
            config = os.path.join(
                get_package_share_directory('uma_arm_control'),
                'config',
                'dynamics_params.yaml'
            )

            gravity_compensation_node = Node(
                    package='uma_arm_control',
                    executable='gravity_compensation',
                    name='gravity_compensation',
                    output='screen',
                    parameters=[config]
                )

            return LaunchDescription([gravity_compensation_node])

  4. Modify the CMakeLists.txt to include the new node
    Show the code
    CMakeLists.txt
        #   Author: Juan M. Gandarias (http://jmgandarias.com)
        #   email: jmgandarias@uma.es

        cmake_minimum_required(VERSION 3.8)
        project(uma_arm_control)

        if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
          add_compile_options(-Wall -Wextra -Wpedantic)
        endif()

        # find dependencies
        find_package(ament_cmake REQUIRED)
        find_package(rclcpp REQUIRED)
        find_package(std_msgs REQUIRED)
        find_package(geometry_msgs REQUIRED)
        find_package(sensor_msgs REQUIRED)
        find_package(Eigen3 REQUIRED)

        include_directories(${EIGEN3_INCLUDE_DIR})

        ## COMPILE
        add_executable(uma_arm_dynamics src/uma_arm_dynamics.cpp)
        add_executable(gravity_compensation src/gravity_compensation.cpp)

        ament_target_dependencies(uma_arm_dynamics
          rclcpp
          std_msgs
          sensor_msgs
          geometry_msgs
          Eigen3
        )

        ament_target_dependencies(gravity_compensation
          rclcpp
          std_msgs
          sensor_msgs
          Eigen3
        )

        if(BUILD_TESTING)
          find_package(ament_lint_auto REQUIRED)
          # the following line skips the linter which checks for copyrights
          # comment the line when a copyright and license is added to all source files
          set(ament_cmake_copyright_FOUND TRUE)
          # the following line skips cpplint (only works in a git repo)
          # comment the line when this package is in a git repo and when
          # a copyright and license is added to all source files
          set(ament_cmake_cpplint_FOUND TRUE)
          ament_lint_auto_find_test_dependencies()
        endif()

        install(TARGETS uma_arm_dynamics gravity_compensation
          DESTINATION lib/${PROJECT_NAME}
          )

        install(DIRECTORY
          launch
          config
          DESTINATION share/${PROJECT_NAME}/
        )

        ament_package()

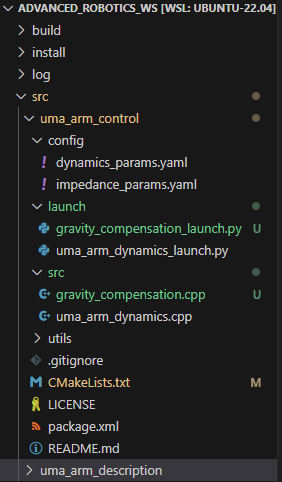

  5. Once you have done this, the uma_arm_control package should look like this:

    workspace_gravity

  6. Now, you can compile the workspace

    cdw
    cb


3.1.2. Launch the controller

To launch the controller you'll need to do the following:

  1. Open one terminal and launch the uma_arm_visualization.
  2. Open another terminal and launch the controller.
  3. Open another terminal and launch the dynamics model

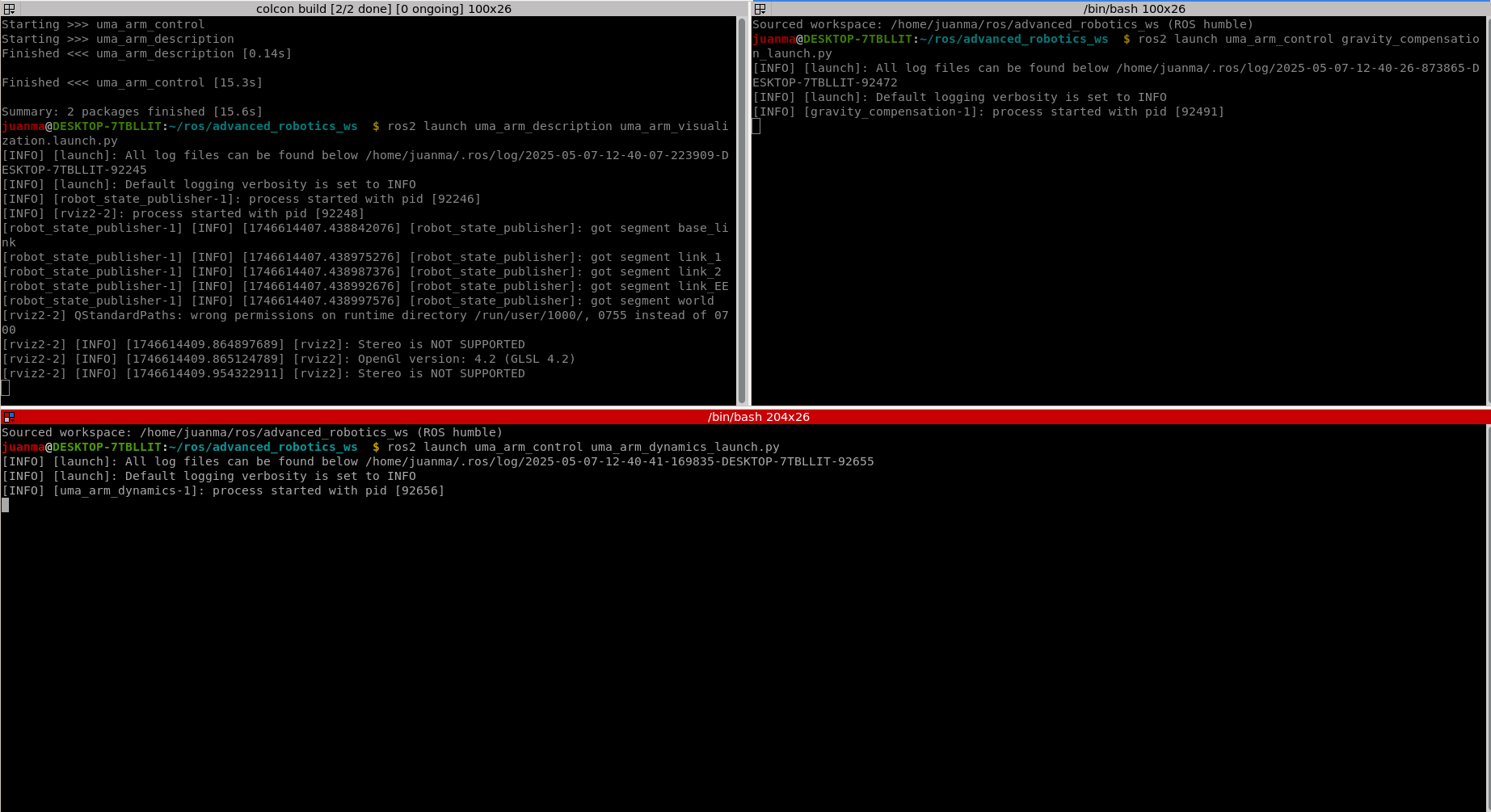

terminals_gravity

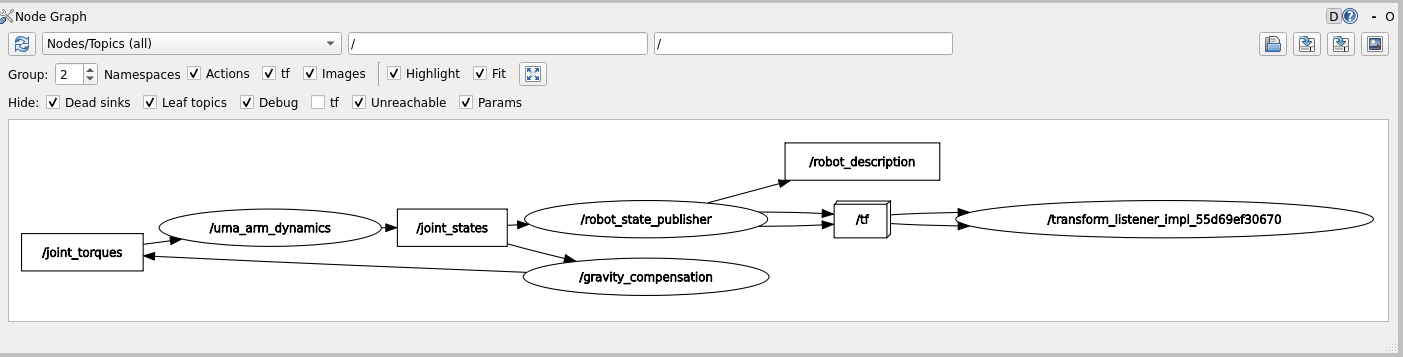

If you run the rqt_graph you should see how the gravity compensation node is getting the joint_state and feeding the manipulator with the computed torques

rqt_gravity

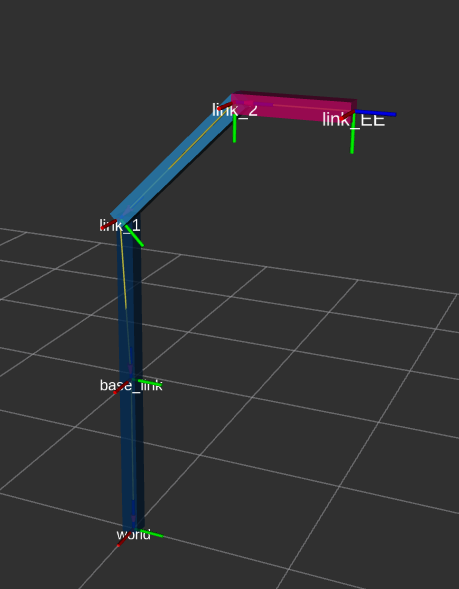

As a result, now the manipulator stays in the initial position defined by \(\mathbf{q}_0 = [45^o, -45^o]\) (note that the initial position is defined by q0 in the dynamics_params.yamlconfig file).

result_gravity

3.1.3. Simulating the force sensor

As we don't have a proper simulator where we could attach a simulated F/T sensor to the robot EE and apply forces against virtual objects, what we can do is to virtually apply forces to the EE of the robot. We can do this because, in the previous lab, we inmplemented considered the dynamics effects of external wrenches applied to the EE in the robot dynamics model.

\[ \boldsymbol{\tau}_{ext} = \mathbf{J}(\mathbf{q})^T \cdot \mathbf{F}_{ext} \]

Hence, we can simulate an F/T sensor with a node that publishes virtual wrenches. To do this, you can use the wrench_trackbar_publisher.py utility included in the uma_control package.

Show the code
wrench_trackbar_publisher.py
    import rclpy
    from rclpy.node import Node
    from geometry_msgs.msg import Wrench
    import tkinter as tk
    from threading import Thread
    import time

    class WrenchTrackbarPublisher(Node):
        def __init__(self):
            super().__init__('wrench_trackbar_publisher')
            self.publisher_ = self.create_publisher(Wrench, 'external_wrenches', 10)
            self.force_x = 0.0
            self.force_y = 0.0
            self.force_z = 0.0
            self.torque_x = 0.0
            self.torque_y = 0.0
            self.torque_z = 0.0
            self.continuous_mode = True

            self.root = tk.Tk()
            self.root.title("Wrench Publisher")

            self.create_trackbar('Force X', -30.0, 30.0, self.update_force_x)
            self.create_trackbar('Force Y', -30.0, 30.0, self.update_force_y)
            self.create_trackbar('Force Z', -30.0, 30.0, self.update_force_z)
            self.create_trackbar('Torque X', -10.0, 10.0, self.update_torque_x)
            self.create_trackbar('Torque Y', -10.0, 10.0, self.update_torque_y)
            self.create_trackbar('Torque Z', -10.0, 10.0, self.update_torque_z)

            self.mode_button = tk.Button(self.root, text="Switch to Instantaneous Mode", command=self.switch_mode)
            self.mode_button.pack()

            center_button = tk.Button(self.root, text="Center All", command=self.center_all)
            center_button.pack()

            # Start the publishing thread
            self.publish_thread = Thread(target=self.publish_wrench_continuously)
            self.publish_thread.start()

        def create_trackbar(self, label, min_val, max_val, callback):
            frame = tk.Frame(self.root)
            frame.pack()
            tk.Label(frame, text=f"{min_val}").pack(side=tk.LEFT)
            trackbar = tk.Scale(frame, label=label, from_=min_val, to=max_val, orient=tk.HORIZONTAL, command=callback, resolution=0.1, length=400, sliderlength=30)
            trackbar.pack(side=tk.LEFT)
            trackbar.bind("<ButtonRelease-1>", lambda event, lbl=label: self.reset_slider(lbl))
            tk.Label(frame, text=f"{max_val}").pack(side=tk.LEFT)

        def update_force_x(self, value):
            self.force_x = float(value)

        def update_force_y(self, value):
            self.force_y = float(value)

        def update_force_z(self, value):
            self.force_z = float(value)

        def update_torque_x(self, value):
            self.torque_x = float(value)

        def update_torque_y(self, value):
            self.torque_y = float(value)

        def update_torque_z(self, value):
            self.torque_z = float(value)

        def reset_slider(self, label):
            if not self.continuous_mode:
                for widget in self.root.winfo_children():
                    if isinstance(widget, tk.Frame):
                        for child in widget.winfo_children():
                            if isinstance(child, tk.Scale) and child.cget("label") == label:
                                child.set(0.0)

        def switch_mode(self):
            self.continuous_mode = not self.continuous_mode
            mode_text = "Switch to Continuous Mode" if not self.continuous_mode else "Switch to Instantaneous Mode"
            self.mode_button.config(text=mode_text)

        def center_all(self):
            for widget in self.root.winfo_children():
                if isinstance(widget, tk.Frame):
                    for child in widget.winfo_children():
                        if isinstance(child, tk.Scale):
                            child.set(0.0)

        def publish_wrench_continuously(self):
            while rclpy.ok():
                msg = Wrench()
                msg.force.x = self.force_x
                msg.force.y = self.force_y
                msg.force.z = self.force_z
                msg.torque.x = self.torque_x
                msg.torque.y = self.torque_y
                msg.torque.z = self.torque_z
                self.publisher_.publish(msg)
                time.sleep(0.001)  # Sleep for 1 millisecond (1 kHz frequency)

        def run(self):
            self.root.mainloop()

    def main(args=None):
        rclpy.init(args=args)
        node = WrenchTrackbarPublisher()
        try:
            node.run()
        except KeyboardInterrupt:
            pass
        finally:
            node.destroy_node()
            rclpy.shutdown()

    if __name__ == '__main__':
        main()

Note that you don't have to change anything in that script. You can run it by openning a terminal and running the following:

cdw
cd src/uma_arm_control/utils
python3 wrench_trackbar_publisher.py

Once you have done this, you'll see a GUI that allows you to publish virtual forces and torques. Note that, as our robot has only 2 DoFs and the dynamics model considers only the 2D XY plane, only forces applied at the X and Y axes will have an effect on our robot. This GUI has two operation modes: The continuous mode and the instantaneuos mode. You can see how they work in this video:

Launch the dynamics model and the gravity compensation controller and apply virtual forces. Your rqt_graph should then look like this:

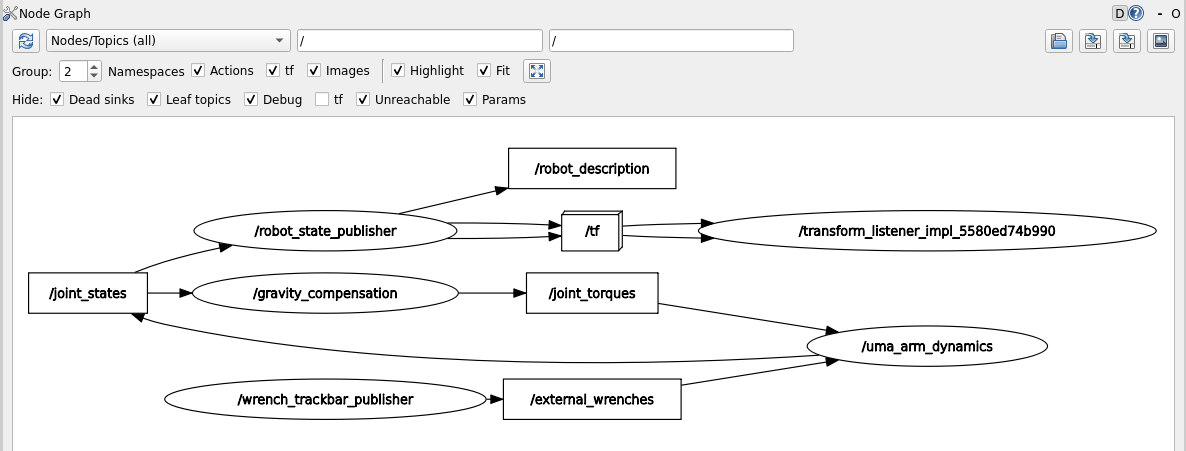

rqt_forces

Question

What is the behavior of the robot when you apply virtual forces to the EE? Use videos and/or plots to support your answer.

3.2. Linearization by inverse dynamics control

3.2.1. Implementation

Now, we can compensate the whole non-linear dynamics of the manipulator by feedback linearization. This way, we'll theoretically be able to force the manipulator to achieve a desired dynamics behavior without being affected by their own dynamics (note that this is only true when the dynamics model perfectly matches the manipulator dynamics, which won't happen in the real world).

To do this, you need to implement the following control schema

inverse_dynamics_control

Then, we need to create a node that computes the non-linear dynamics cancellation based on the desired joint accelerations (\(\ddot{\mathbf{q}}_d\)) and the current joint state (\(\mathbf{q}, \dot{\mathbf{q}}\)). Then, the commanded joint torques computed with the inverse dynamics controller are given by

\[ \boldsymbol{\tau} = \mathbf{M}(\mathbf{q}) \cdot \ddot{\mathbf{q}}_d + \underbrace{\mathbf{C} (\mathbf{q}, \dot{\mathbf{q}}) \cdot \dot{\mathbf{q}} + \mathbf{F}_b \cdot \dot{\mathbf{q}} + \mathbf{g}}_{\mathbf{n}(\mathbf{q}, \dot{\mathbf{q}})} \]

To implement the inverse dynamics controller you need to do the following:

  1. Create the inverse dynamics cancellation node: dynamics_cancellation.cpp
Show the code
dynamics_cancellation.cpp
    /*

    Author: Juan M. Gandarias (http://jmgandarias.com)
    email: jmgandarias@uma.es


    This script cancellate the manipulator dynamics with feedback linearization

    tau = M(q)*q'' + n(q,q')

    with n(q,q') = C(q,q')q' + Fb q' + g(q)

    Inputs: desired_joint_accelerations, joint_state(joint_positions, joint_velocities)

    Output: joint_torques


    */

    #include <rclcpp/rclcpp.hpp>
    #include <sensor_msgs/msg/joint_state.hpp>
    #include <std_msgs/msg/float64_multi_array.hpp>
    #include <geometry_msgs/msg/wrench.hpp>
    #include <chrono>
    #include <Eigen/Dense>
    #include <cmath>

    class DynamicsCancellationNode : public rclcpp::Node
    {
    public:
        DynamicsCancellationNode()
            : Node("dynamics_cancellation_node"),
              joint_positions_(Eigen::VectorXd::Zero(2)),
              joint_velocities_(Eigen::VectorXd::Zero(2)),
              desired_joint_accelerations_(Eigen::VectorXd::Zero(2)),
              joint_torques_(Eigen::VectorXd::Zero(2))
        {
            // Frequency initialization
            this->declare_parameter<double>("frequency", 1000.0);

            // Dynamics parameters initialization
            this->declare_parameter<double>("m2", 1.0);
            this->declare_parameter<double>("m1", 1.0);
            this->declare_parameter<double>("l1", 1.0);
            this->declare_parameter<double>("l2", 1.0);
            this->declare_parameter<double>("b1", 1.0);
            this->declare_parameter<double>("b2", 1.0);
            this->declare_parameter<double>("g", 9.81);
            this->declare_parameter<std::vector<double>>("q0", {0, 0});

            // Get frequency [Hz] parameter and compute period [s]
            double frequency = this->get_parameter("frequency").as_double();

            // Get dynamic parameters
            m1_ = this->get_parameter("m1").as_double();
            m2_ = this->get_parameter("m2").as_double();
            l1_ = this->get_parameter("l1").as_double();
            l2_ = this->get_parameter("l2").as_double();
            g_ = this->get_parameter("g").as_double();
            b1_ = this->get_parameter("b1").as_double();
            b2_ = this->get_parameter("b2").as_double();

            // Set initial joint state
            joint_positions_ = Eigen::VectorXd::Map(this->get_parameter("q0").as_double_array().data(), 2);

            // Create subscription to joint_states
            subscription_joint_states_ = this->create_subscription<sensor_msgs::msg::JointState>(
                "joint_states", 1, std::bind(&DynamicsCancellationNode::joint_states_callback, this, std::placeholders::_1));

            // Create subscription to joint_accelerations
            subscription_desired_joint_accelerations_ = this->create_subscription<std_msgs::msg::Float64MultiArray>(
                "desired_joint_accelerations", 1, std::bind(&DynamicsCancellationNode::desired_joint_accelerations_callback, this, std::placeholders::_1));

            // Create publishers for joint torque
            publisher_joint_torques_ = this->create_publisher<std_msgs::msg::Float64MultiArray>("joint_torques", 1);

            // Set the timer callback at a period (in milliseconds, multiply it by 1000)
            timer_ = this->create_wall_timer(
                std::chrono::milliseconds(static_cast<int>(1000 / frequency)), std::bind(&DynamicsCancellationNode::timer_callback, this));
        }

        // Timer callback - when there is a timer callback, computes the new joint acceleration, velocity and position and publishes them
        void timer_callback()
        {
            // Calculate torque to cancel the dynamic effects
            joint_torques_ = cancel_dynamics();

            // Publish data
            publish_data();
        }

    private:
        // joint_states subscription callback - when a new message arrives, updates the dynamics cancellation and publishes teh joint_torques_
        void joint_states_callback(const sensor_msgs::msg::JointState::SharedPtr msg)
        {

            // Assuming the joint names are "joint_1" and "joint_2"
            auto joint1_index = std::find(msg->name.begin(), msg->name.end(), "joint_1") - msg->name.begin();
            auto joint2_index = std::find(msg->name.begin(), msg->name.end(), "joint_2") - msg->name.begin();

            if (static_cast<std::vector<std::string>::size_type>(joint1_index) < msg->name.size() &&
                static_cast<std::vector<std::string>::size_type>(joint2_index) < msg->name.size())
            {
                joint_positions_(0) = msg->position[joint1_index];
                joint_positions_(1) = msg->position[joint2_index];
                joint_velocities_(0) = msg->velocity[joint1_index];
                joint_velocities_(1) = msg->velocity[joint2_index];
            }
        }

        // joint_states subscription callback - when a msg arrives, updates desired_joint_accelerations_
        void desired_joint_accelerations_callback(const std_msgs::msg::Float64MultiArray::SharedPtr msg)
        {
            desired_joint_accelerations_ = Eigen::VectorXd::Map(msg->data.data(), msg->data.size());
        }

        // Method to calculate joint acceleration
        Eigen::VectorXd cancel_dynamics()
        {
            // Initialize M, C, Fb, g_vec, and tau_ext

            // Initialize q1, q2, q_dot1, and q_dot2

            // Calculate matrix M

            // Calculate vector C (C is 2x1 because it already includes q_dot)

            // Calculate Fb matrix

            // Calculate g_vect

            // Calculate control torque using the dynamic model: torque = M * q_ddot + C * q_dot + Fb * q_dot + g
            Eigen::VectorXd torque(2);
            torque << 0, 0;

            return torque;
        }

        // Method to publish the joint data
        void publish_data()
        {
            // publish joint torque
            auto joint_torques_msg = std_msgs::msg::Float64MultiArray();
            joint_torques_msg.data.assign(joint_torques_.data(), joint_torques_.data() + joint_torques_.size());
            publisher_joint_torques_->publish(joint_torques_msg);
        }

        // Member variables
        // Publishers and subscribers
        rclcpp::Subscription<sensor_msgs::msg::JointState>::SharedPtr subscription_joint_states_;
        rclcpp::Subscription<std_msgs::msg::Float64MultiArray>::SharedPtr subscription_desired_joint_accelerations_;
        rclcpp::Publisher<std_msgs::msg::Float64MultiArray>::SharedPtr publisher_joint_torques_;
        rclcpp::TimerBase::SharedPtr timer_;

        // Joint variables
        Eigen::VectorXd joint_positions_;
        Eigen::VectorXd joint_velocities_;
        Eigen::VectorXd desired_joint_accelerations_;
        Eigen::VectorXd joint_torques_;

        // dynamic parameters variables
        double m1_;
        double m2_;
        double l1_;
        double l2_;
        double b1_;
        double b2_;
        double g_;
    };

    int main(int argc, char *argv[])
    {
        rclcpp::init(argc, argv);
        auto node = std::make_shared<DynamicsCancellationNode>();
        rclcpp::spin(node);
        rclcpp::shutdown();
        return 0;
    }
  1. You need to program the method cancel_dynamics() to calculate de desired torques.
    // Method to calculate the desired joint torques
    Eigen::VectorXd cancel_dynamics()
    {
         // Initialize M, C, Fb, g_vec, and tau_ext

        // Initialize q1, q2, q_dot1, and q_dot2

        // Calculate matrix M

        // Calculate vector C (C is 2x1 because it already includes q_dot)

        // Calculate Fb matrix

        // Calculate g_vect

        // Calculate control torque using the dynamic model: torque = M * q_ddot + C * q_dot + Fb * q_dot + g
        Eigen::VectorXd torque(2);
        torque << 0, 0;

        return torque;
    }

  2. Create the dynamics_cancellation_launch.py file (you need to do this in order to get the dynamic pameters from the config file). You don't need to do any modification in this file, just include it inside the launch folder.
    Show the code
    dynamics_cancellation_launch.py
        import os
        from launch import LaunchDescription
        from launch_ros.actions import Node
        from ament_index_python.packages import get_package_share_directory

        def generate_launch_description():
            config = os.path.join(
                get_package_share_directory('uma_arm_control'),
                'config',
                'dynamics_params.yaml'
            )

            dynamics_cancellation_node = Node(
                    package='uma_arm_control',
                    executable='dynamics_cancellation',
                    name='dynamics_cancellation',
                    output='screen',
                    parameters=[config]
                )

            return LaunchDescription([dynamics_cancellation_node])

  3. Modify the CMakeLists.txt to include the new node
    Show the code
    CMakeLists.txt
        #   Author: Juan M. Gandarias (http://jmgandarias.com)
        #   email: jmgandarias@uma.es

        cmake_minimum_required(VERSION 3.8)
        project(uma_arm_control)

        if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
          add_compile_options(-Wall -Wextra -Wpedantic)
        endif()

        # find dependencies
        find_package(ament_cmake REQUIRED)
        find_package(rclcpp REQUIRED)
        find_package(std_msgs REQUIRED)
        find_package(geometry_msgs REQUIRED)
        find_package(sensor_msgs REQUIRED)
        find_package(Eigen3 REQUIRED)

        include_directories(${EIGEN3_INCLUDE_DIR})

        ## COMPILE
        add_executable(uma_arm_dynamics src/uma_arm_dynamics.cpp)
        add_executable(gravity_compensation src/gravity_compensation.cpp)
        add_executable(dynamics_cancellation src/dynamics_cancellation.cpp)

        ament_target_dependencies(uma_arm_dynamics
          rclcpp
          std_msgs
          sensor_msgs
          geometry_msgs
          Eigen3
        )

        ament_target_dependencies(gravity_compensation
          rclcpp
          std_msgs
          sensor_msgs
          Eigen3
        )

        ament_target_dependencies(dynamics_cancellation
          rclcpp
          std_msgs
          sensor_msgs
          geometry_msgs
          Eigen3
        )

        if(BUILD_TESTING)
          find_package(ament_lint_auto REQUIRED)
          # the following line skips the linter which checks for copyrights
          # comment the line when a copyright and license is added to all source files
          set(ament_cmake_copyright_FOUND TRUE)
          # the following line skips cpplint (only works in a git repo)
          # comment the line when this package is in a git repo and when
          # a copyright and license is added to all source files
          set(ament_cmake_cpplint_FOUND TRUE)
          ament_lint_auto_find_test_dependencies()
        endif()

        install(TARGETS uma_arm_dynamics dynamics_cancellation gravity_compensation
          DESTINATION lib/${PROJECT_NAME}
          )

        install(DIRECTORY
          launch
          config
          DESTINATION share/${PROJECT_NAME}/
        )

        ament_package()

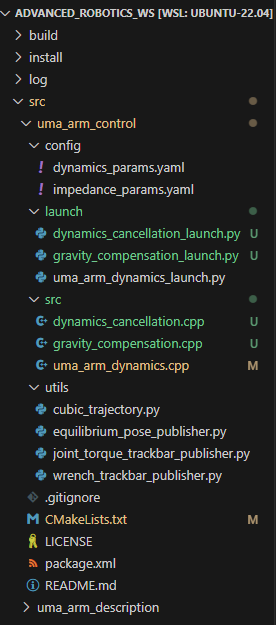

  4. Once you have done this, the uma_arm_control package should look like this:

    workspace_dynamics_cancellation

  5. Now, you can compile the workspace

    cdw
    cb


3.2.2. Launch the controller

To launch the inverse dynamics controller you'll need to do the following:

  1. Open one terminal and launch the uma_arm_visualization.
  2. Open another terminal and launch the controller.
  3. Open another terminal and launch the dynamics model.

3.2.2. Expected results

If the inverse dynamics controller works well, when a trajectory is commanded to the controller, the manipulator should exactly follow that trajectory. We can test it by sending a cubic joint trajectory. To do this, the uma_arm_control package provides a cubic trajectory generator you can use.

You can generate the desired joint trajectory by openning a new terminal and running the following:

cdw
cd src/uma_arm_control/utils
python3 cubic_trajectory.py

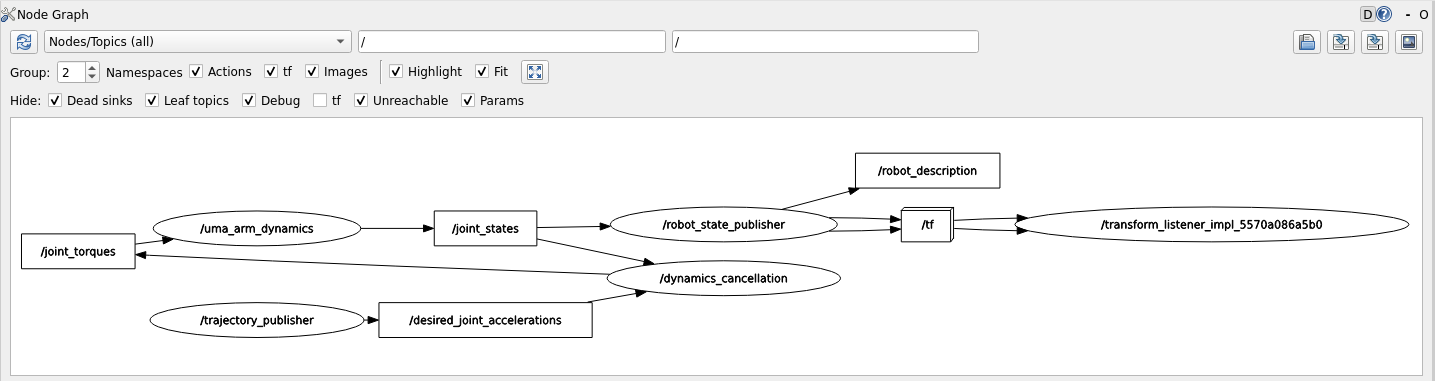

Once you have done this, your rqt_graph should then look like this:

rqt_trajectory

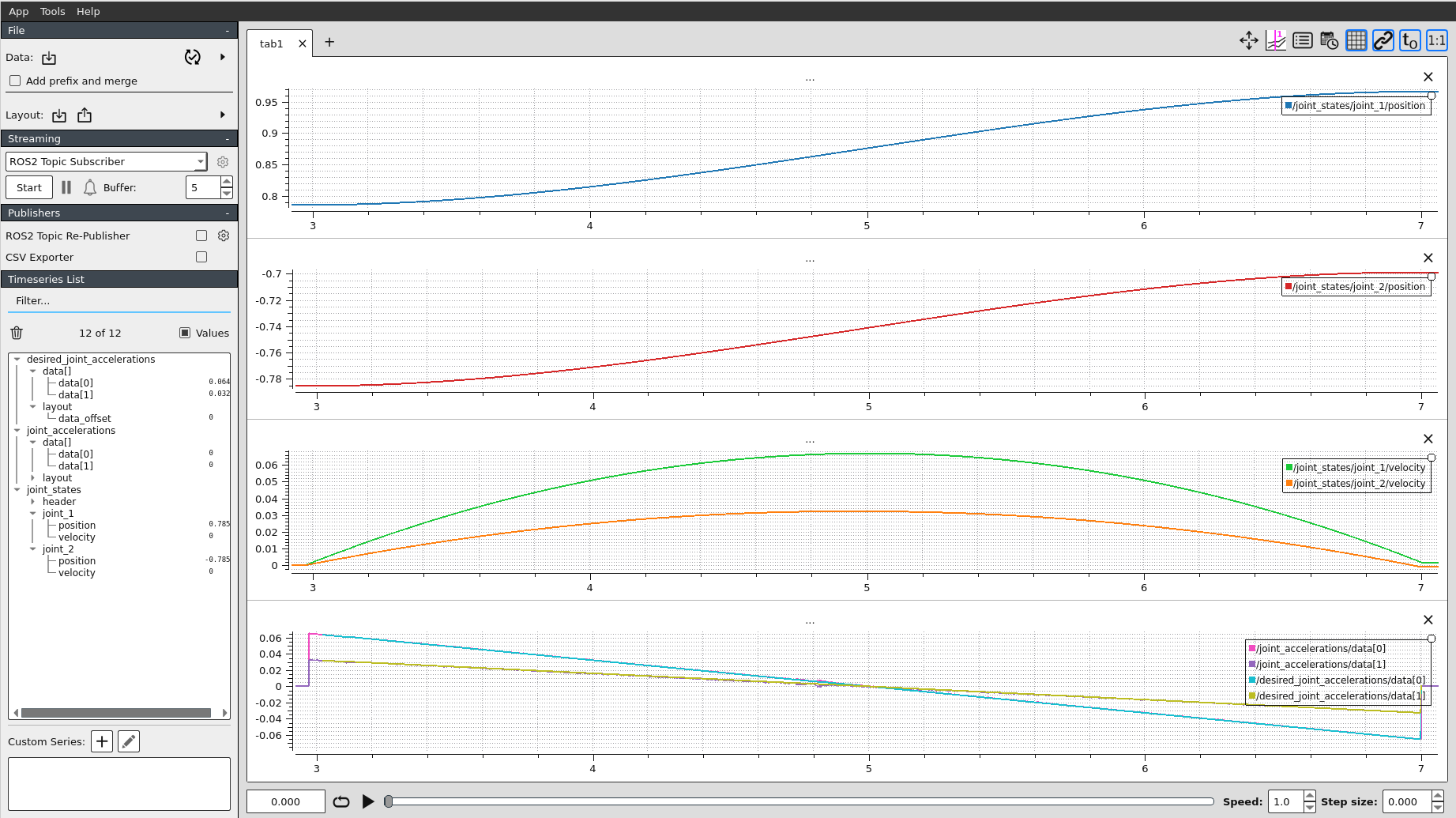

If you record the data of the experiment, you'll see the following:

results_trajectory

3.3. Experiments

Question

  • What happens if the compensation dynamics model is not exactly the same as the manipulator dynamics?

    1. Try to change the masses m1, m2 and lengths l1, l2 of the links in the dynamics_params.yaml (gravity_compensation) file. What are the effects of having incorrent dynamics parameters when launching the gravity compensation controller?
    2. Try the same for the dynamics cancellation. In this case, you can also change the parameters b1 and b2. What are the effects when launching the dynamics cancellation controller?
  • What is the behavior of the robot under the inverse dynamics controller when you apply virtual forces to the EE? Use videos and/or plots to support your answer.

3.4. Extra (optional)

Create a node that implements the PD controller presented in Fig. 4 (stabilizing linear control block) of the lecture slides. Specify a desired joint position \(\mathbf{q}_d\) (inside the joint workspace) and set \(\dot{\mathbf{q}}_d = \boldsymbol{0}\), \(\ddot{\mathbf{q}}_d = \boldsymbol{0}\).

This node must subscribe to the current joint state topic /joint_states to get the current joint positions (\(\mathbf{q}\)) and velocities (\(\dot{\mathbf{q}}\)); and it must then publish the desired joint accelerations (\(\ddot{\mathbf{q}}_d\)) in the topic /desired_joint_accelerations to which the dynamics cancellation node will subscribe.

Select and report the values chosen for \(\mathbf{K}_P\) and \(\mathbf{K}_D\). You can use matlab to simulate the expected dynamic behavior of the overall system.
