Lab Session 4: Impedance Control

4.1. Cartesian impedance control

In this lab session we are going to implement a Cartesian Impedance Controller according to the following scheme:

impedance_control

4.2. Controller implementation

The controller has two levels:

  • First, and close to the manipulator, we have the dynamics compensation at the joint level (the one you did in Lab 3).
  • Then, at a higher level, we have the Cartesian impedance controller. As this controller operates in the operational space, we will need to transform between joint and Cartesian variables using the kinematics model, and the first- and second-order differential kinematics. To implement the impedance controller you need to create a new node called impedance_controller.cpp:
Show the code
impedance_controller.cpp
    /*

    Author: Juan M. Gandarias (http://jmgandarias.com)
    email: jmgandarias@uma.es


    - This script computes the dynamic model of a RR manipulator according to the impedance model:

    F_ext - k x_error - B x'_error = M x''

    where x_error = x - x_d, and x'_error = x' - x'_d

    then: x'' = M^(-1)[F_ext - k x_error - B x'_error]

    - To compute x_error and x'_error, we need the current x and x'.
    They can be computed with the forward kinematics model and first-order differential kinematics:

    Forward kinematics: x  =  f(q)
    First-order differential kinematics: x' = J(q) q'

    - We assume F_ext is given from the measures of an F/T sensor in the EE.

    - The computed x'' represents the desired dynamic behavior of the manipulator at the EE level, but it must be transformed to the
    joint space. It can be done with the second order differential kinematics (deriving the first-order kinematics):

    First-order differential kinematics:   q'  = J(q)^(-1) x'
    Second-order differential kinematics:  q'' = J(q)^(-1)[x'' - J'(q',q)q']

    Inputs: equilibrium_pose, joint_states, external_wrenches

    Output: desired_joint_accelerations, current_EE_pose

    */

    #include <rclcpp/rclcpp.hpp>
    #include <sensor_msgs/msg/joint_state.hpp>
    #include <std_msgs/msg/float64_multi_array.hpp>
    #include <geometry_msgs/msg/wrench.hpp>
    #include <geometry_msgs/msg/pose_stamped.hpp>
    #include <chrono>
    #include <Eigen/Dense>
    #include <cmath>

    using namespace std::chrono;

    class ImpedanceControllerNode : public rclcpp::Node
    {
    public:
        ImpedanceControllerNode()
            : Node("impedance_controller_node"),
              joint_positions_(Eigen::VectorXd::Zero(2)),
              joint_velocities_(Eigen::VectorXd::Zero(2)),
              desired_joint_accelerations_(Eigen::VectorXd::Zero(2)),
              joint_torques_(Eigen::VectorXd::Zero(2)),
              external_wrenches_(Eigen::VectorXd::Zero(2)),
              jacobian_(Eigen::MatrixXd::Zero(2, 2)),
              jacobian_derivative_(Eigen::MatrixXd::Zero(2, 2)),
              equilibrium_pose_(Eigen::VectorXd::Zero(2)),
              previous_time_(high_resolution_clock::now())
        {
            // Frequency initialization
            this->declare_parameter<double>("frequency", 1000.0);

            // Dynamics parameters initialization
            this->declare_parameter<double>("m1", 1.0);
            this->declare_parameter<double>("m2", 1.0);
            this->declare_parameter<double>("l1", 1.0);
            this->declare_parameter<double>("l2", 1.0);

            // Impedance parameters initialization
            this->declare_parameter<std::vector<double>>("M", {0, 0, 0, 0});
            this->declare_parameter<std::vector<double>>("B", {0, 0, 0, 0});
            this->declare_parameter<std::vector<double>>("K", {0, 0, 0, 0});

            // Equilibrium pose initialization
            this->declare_parameter<std::vector<double>>("q0", {0, 0});

            // Get frequency [Hz] parameter and compute period [s]
            double frequency = this->get_parameter("frequency").as_double();

            // Get dynamic parameters
            m1_ = this->get_parameter("m1").as_double();
            m2_ = this->get_parameter("m2").as_double();
            l1_ = this->get_parameter("l1").as_double();
            l2_ = this->get_parameter("l2").as_double();

            // Get impedance parameters
            auto check_matrix_size = [](const std::vector<double> &vec, const std::string &name)
            {
                if (vec.size() != 4)
                    throw std::runtime_error("Matrix '" + name + "' must have exactly 4 elements.");
            };

            auto M_vec = this->get_parameter("M").as_double_array();
            auto B_vec = this->get_parameter("B").as_double_array();
            auto K_vec = this->get_parameter("K").as_double_array();

            check_matrix_size(M_vec, "M");
            check_matrix_size(B_vec, "B");
            check_matrix_size(K_vec, "K");

            mass_matrix_ = Eigen::MatrixXd::Map(M_vec.data(), 2, 2);
            damping_matrix_ = Eigen::MatrixXd::Map(B_vec.data(), 2, 2);
            stiffness_matrix_ = Eigen::MatrixXd::Map(K_vec.data(), 2, 2);

            // Se initial equilibrium pose
            joint_positions_ = Eigen::VectorXd::Map(this->get_parameter("q0").as_double_array().data(), 2);
            equilibrium_pose_ = forward_kinematics();
            equilibrium_pose_received_ = true;

            // Create subscription to joint_states
            subscription_joint_states_ = this->create_subscription<sensor_msgs::msg::JointState>(
                "joint_states", 1, std::bind(&ImpedanceControllerNode::joint_states_callback, this, std::placeholders::_1));

            // Create subscription to joint_states
            subscription_equilibrium_pose_ = this->create_subscription<geometry_msgs::msg::PoseStamped>(
                "equilibrium_pose", 1, std::bind(&ImpedanceControllerNode::equilibrium_pose_callback, this, std::placeholders::_1));

            // Create subscription to joint_torques
            external_wrenches_subscription_ = this->create_subscription<geometry_msgs::msg::Wrench>(
                "external_wrenches", 1, std::bind(&ImpedanceControllerNode::external_wrenches_callback, this, std::placeholders::_1));

            // Create publishers for joint acceleration
            publisher_acceleration_ = this->create_publisher<std_msgs::msg::Float64MultiArray>("desired_joint_accelerations", 1);

            // Create publishers for EE pose
            publisher_EE_pose_ = this->create_publisher<geometry_msgs::msg::PoseStamped>("current_EE_pose", 1);

            // Set the timer callback at a period (in milliseconds, multiply it by 1000)
            timer_ = this->create_wall_timer(
                std::chrono::milliseconds(static_cast<int>(1000 / frequency)), std::bind(&ImpedanceControllerNode::timer_callback, this));
        }

        // Timer callback - when there is a timer callback, computes the new joint acceleration, velocity and position and publishes them
        void timer_callback()
        {

            if (!joint_states_received_ || !external_wrench_received_ || !equilibrium_pose_received_)
            {
                RCLCPP_WARN_THROTTLE(this->get_logger(), *this->get_clock(), 2000,
                                     "Waiting for all inputs: joint_states [%s], external_wrenches [%s], equilibrium_pose [%s]",
                                     joint_states_received_ ? "OK" : "MISSING",
                                     external_wrench_received_ ? "OK" : "MISSING",
                                     equilibrium_pose_received_ ? "OK" : "MISSING");
                return;
            }

            cartesian_pose_ = forward_kinematics();                                 // Calculate cartesian pose
            update_jacobians();                                                     // Update jacobian and jacobian derivative
            cartesian_velocities_ = differential_kinematics();                      // Calculate Cartesian velocity with first-order differental kinematics
            desired_cartesian_accelerations_ = impedance_controller();              // Calculate desired cartesian accelerations with impedance controller
            desired_joint_accelerations_ = calculate_desired_joint_accelerations(); // Calculate the desired_joint_accelerations

            if ((desired_joint_accelerations_.array().isNaN()).any())
            {
                RCLCPP_ERROR(this->get_logger(), "Computed NaN in desired_joint_accelerations. Skipping publish.");
                return;
            }

            // Publish data
            publish_data();
        }

    private:
        // joint_states subscription callback - when a new message arrives, updates the dynamics cancellation and publishes teh joint_torques_
        void joint_states_callback(const sensor_msgs::msg::JointState::SharedPtr msg)
        {

            // Assuming the joint names are "joint_1" and "joint_2"
            auto joint1_index = std::find(msg->name.begin(), msg->name.end(), "joint_1") - msg->name.begin();
            auto joint2_index = std::find(msg->name.begin(), msg->name.end(), "joint_2") - msg->name.begin();

            if (std::isnan(msg->position[joint1_index]) || std::isnan(msg->position[joint2_index]) ||
                std::isnan(msg->velocity[joint1_index]) || std::isnan(msg->velocity[joint2_index]))
            {
                RCLCPP_WARN(this->get_logger(), "Received NaN in joint states. Skipping update.");
                return;
            }

            if (static_cast<std::vector<std::string>::size_type>(joint1_index) < msg->name.size() &&
                static_cast<std::vector<std::string>::size_type>(joint2_index) < msg->name.size())
            {
                joint_positions_(0) = msg->position[joint1_index];
                joint_positions_(1) = msg->position[joint2_index];
                joint_velocities_(0) = msg->velocity[joint1_index];
                joint_velocities_(1) = msg->velocity[joint2_index];
            }

            RCLCPP_INFO(this->get_logger(), "Received joint state: pos = [%.3f, %.3f], vel = [%.3f, %.3f]",
                        joint_positions_(0), joint_positions_(1),
                        joint_velocities_(0), joint_velocities_(1));

            joint_states_received_ = true;
        }

        // joint_states subscription callback - when a new message arrives, updates the dynamics cancellation and publishes teh joint_torques_
        void equilibrium_pose_callback(const geometry_msgs::msg::PoseStamped::SharedPtr msg)
        {
            equilibrium_pose_(0) = msg->pose.position.x;
            equilibrium_pose_(1) = msg->pose.position.y;

            equilibrium_pose_received_ = true;

            RCLCPP_INFO(this->get_logger(),
                        "Equilibrium pose updated via topic: [%.3f, %.3f]",
                        equilibrium_pose_(0), equilibrium_pose_(1));
        }

        // Subscription callback - when a new message arrives, updates external_wrenches_
        void external_wrenches_callback(const geometry_msgs::msg::Wrench::SharedPtr msg)
        {
            auto forces = msg->force;
            // This change of coordinates is based on how the dynamic model is define in the 2D plane and the EE frame is defined in the 3D plane
            external_wrenches_(0) = forces.x;
            external_wrenches_(1) = forces.y;

            external_wrench_received_ = true;
        }

        // Method to calculate forward kinematics
        Eigen::VectorXd forward_kinematics()
        {
            // Placeholder for forward kinematics x = [l1 * cos(q1) + l2 * cos(q1 + q2), l1 * sin(q1) + l2 * sin(q1 + q2)]
            Eigen::VectorXd x(2);
            x << 0, 0;

            return x;
        }

        // Method to update jacobian and jacobian derivative
        void update_jacobians()
        {
            // Placeholder for jacobian and jacobian_derivative matrices

            // Calculate J(q)
            jacobian_ << 0,0,
                0,0;

            // Calculate J'(q,q')
            jacobian_derivative_ << 0,0,
                0,0;

            RCLCPP_INFO(this->get_logger(), "Jacobian:\n[%.3f, %.3f]\n[%.3f, %.3f]",
                        jacobian_(0, 0), jacobian_(0, 1),
                        jacobian_(1, 0), jacobian_(1, 1));

            double det = jacobian_.determinant();
            RCLCPP_INFO(this->get_logger(), "Jacobian determinant: %.6f", det);
        }

        // Method to calculate Cartesian velocity with the first-order differential kinematics
        Eigen::MatrixXd differential_kinematics()
        {
            // Placeholder for first-order differential kinematics
            Eigen::VectorXd x_dot(2);
            x_dot << 0,0;

            return x_dot;
        }

        // Method to compute the impedance controller
        Eigen::VectorXd impedance_controller()
        {
            // Placeholder for impedance controller calculation
            Eigen::VectorXd x_dot_d = Eigen::VectorXd::Zero(2); // We assume desired cartesian velocity = 0

            // Calculate Cartesian errors
            Eigen::VectorXd x_error << 0,0;
            Eigen::VectorXd x_dot_error << 0,0;

            // Replace with actual impedance controller equation: x'' = M^(-1)[F_ext - k x_error - B x'_error]
            Eigen::VectorXd x_ddot(2);
            x_ddot << 0,0;

            return x_ddot;
        }

        // Method to calculate joint acceleration with the inverse of second-order differential kinematics
        Eigen::VectorXd calculate_desired_joint_accelerations()
        {
            // Placeholder for the second-order differential kinematics
            // q'' = J(q)^(-1)[x'' - J'(q,q')q']

            RCLCPP_INFO(this->get_logger(), "x_ddot: [%.3f, %.3f]",
                        desired_cartesian_accelerations_(0), desired_cartesian_accelerations_(1));

            q_ddot << 0,0;

            return q_ddot;
        }

        // Method to publish the joint data
        void publish_data()
        {
            // publish desired joint acceleration
            auto acceleration_msg = std_msgs::msg::Float64MultiArray();
            acceleration_msg.data.assign(desired_joint_accelerations_.data(), desired_joint_accelerations_.data() + desired_joint_accelerations_.size());
            publisher_acceleration_->publish(acceleration_msg);

            // publish current EE pose
            auto EE_pose_msg = geometry_msgs::msg::PoseStamped();
            EE_pose_msg.pose.position.x = cartesian_pose_[0];
            EE_pose_msg.pose.position.y = cartesian_pose_[1];
            publisher_EE_pose_->publish(EE_pose_msg);
        }

        // Member variables
        // Publishers and subscribers
        rclcpp::Subscription<sensor_msgs::msg::JointState>::SharedPtr subscription_joint_states_;
        rclcpp::Subscription<geometry_msgs::msg::PoseStamped>::SharedPtr subscription_equilibrium_pose_;
        rclcpp::Subscription<geometry_msgs::msg::Wrench>::SharedPtr external_wrenches_subscription_;
        rclcpp::Publisher<std_msgs::msg::Float64MultiArray>::SharedPtr publisher_acceleration_;
        rclcpp::Publisher<geometry_msgs::msg::PoseStamped>::SharedPtr publisher_EE_pose_;
        rclcpp::TimerBase::SharedPtr timer_;

        // Joint variables
        Eigen::VectorXd joint_positions_;
        Eigen::VectorXd joint_velocities_;
        Eigen::VectorXd desired_joint_accelerations_;
        Eigen::VectorXd joint_torques_;
        Eigen::VectorXd external_wrenches_;

        // Jacobian matrices
        Eigen::MatrixXd jacobian_;
        Eigen::MatrixXd jacobian_derivative_;

        // Impedance matrices
        Eigen::MatrixXd mass_matrix_;
        Eigen::MatrixXd damping_matrix_;
        Eigen::MatrixXd stiffness_matrix_;

        // Cartesian variables
        Eigen::VectorXd equilibrium_pose_;
        Eigen::VectorXd cartesian_pose_;
        Eigen::VectorXd cartesian_velocities_;
        Eigen::VectorXd desired_cartesian_accelerations_;

        // dynamic parameters variables
        double m1_;
        double m2_;
        double l1_;
        double l2_;

        // Variable to store the previous callback time and elapsed time
        time_point<high_resolution_clock> previous_time_;
        double elapsed_time_;

        // Flag to ensure joint states, external wrenches or equilibrium poses have been received
        bool joint_states_received_ = false;
        bool external_wrench_received_ = false;
        bool equilibrium_pose_received_ = false;
    };

    int main(int argc, char *argv[])
    {
        rclcpp::init(argc, argv);
        auto node = std::make_shared<ImpedanceControllerNode>();
        rclcpp::spin(node);
        rclcpp::shutdown();
        return 0;
    }

This node subscribes to:

  • The desired equilibrium pose: equilibrium_pose (\(\mathbf{x}_d\))
  • The current joint states: joint_states (\(\mathbf{q}, \dot{\mathbf{q}}\))
  • The external wrenches: external_wrenches (\(\mathbf{f}_{ext}\))

The node gest the impedance parameters (\(\mathbf{M}\), \(\mathbf{B}\), \(\mathbf{K}\)) from the impedance_params.yaml config file in the form of matrices called mass_matrix_, damping_matrix_, and stiffness_matrix_, respectively:

auto M_vec = this->get_parameter("M").as_double_array();
auto B_vec = this->get_parameter("B").as_double_array();
auto K_vec = this->get_parameter("K").as_double_array();

check_matrix_size(M_vec, "M");
check_matrix_size(B_vec, "B");
check_matrix_size(K_vec, "K");

mass_matrix_ = Eigen::MatrixXd::Map(M_vec.data(), 2, 2);
damping_matrix_ = Eigen::MatrixXd::Map(B_vec.data(), 2, 2);
stiffness_matrix_ = Eigen::MatrixXd::Map(K_vec.data(), 2, 2);

In each loop (timer_callback()), the controller does the following:

Show the code
timer_callback
    // Timer callback - when there is a timer callback, computes the new joint acceleration, velocity and position and publishes them
        void timer_callback()
        {

            if (!joint_states_received_ || !external_wrench_received_ || !equilibrium_pose_received_)
            {
                RCLCPP_WARN_THROTTLE(this->get_logger(), *this->get_clock(), 2000,
                                     "Waiting for all inputs: joint_states [%s], external_wrenches [%s], equilibrium_pose [%s]",
                                     joint_states_received_ ? "OK" : "MISSING",
                                     external_wrench_received_ ? "OK" : "MISSING",
                                     equilibrium_pose_received_ ? "OK" : "MISSING");
                return;
            }

            cartesian_pose_ = forward_kinematics();                                 // Calculate cartesian pose
            update_jacobians();                                                     // Update jacobian and jacobian derivative
            cartesian_velocities_ = differential_kinematics();                      // Calculate Cartesian velocity with first-order differental kinematics
            desired_cartesian_accelerations_ = impedance_controller();              // Calculate desired cartesian accelerations with impedance controller
            desired_joint_accelerations_ = calculate_desired_joint_accelerations(); // Calculate the desired_joint_accelerations

            if ((desired_joint_accelerations_.array().isNaN()).any())
            {
                RCLCPP_ERROR(this->get_logger(), "Computed NaN in desired_joint_accelerations. Skipping publish.");
                return;
            }

            // Publish data
            publish_data();
        }
  1. 🔒 First, the controller checks that the joint_states, the external_wrenches, and the equilibrium_pose are received correctly. Otherwise, the controller doesn't publish any reference.

    if (!joint_states_received_ || !external_wrench_received_ || !equilibrium_pose_received_)
        {
            RCLCPP_WARN_THROTTLE(this->get_logger(), *this->get_clock(), 2000,
                                 "Waiting for all inputs: joint_states [%s], external_wrenches [%s], equilibrium_pose [%s]",
                                 joint_states_received_ ? "OK" : "MISSING",
                                 external_wrench_received_ ? "OK" : "MISSING",
                                 equilibrium_pose_received_ ? "OK" : "MISSING");
            return;
        }

  2. 📝 Then, the controller computes the forward kinematics needed to get \(\mathbf{x}\) from \(\mathbf{q}\) with the method forward_kinematics():

    cartesian_pose_ = forward_kinematics();  // Calculate cartesian pose

    You have to implement this method according to the forward kinematics:
    \[ \mathbf{x} = \left[ \begin{matrix} \\ l_1 cos(q_1) + l_2 cos(q_1 + q_2)\\ l_1 sin(q_1) + l_2 sin(q_1 + q_2)\\ \\ \end{matrix}\right] \]
    // Method to calculate forward kinematics
    Eigen::VectorXd forward_kinematics()
    {
        // Placeholder for forward kinematics x = [l1 * cos(q1) + l2 * cos(q1 + q2), l2 * sin(q1) + l2 * sin(q1 + q2)]
        Eigen::VectorXd x(2);
        x << 0, 0;

        return x;
    }

  3. 📝 The controller needs to calculate the Jacobians based on the new data

    update_jacobians(); // Update jacobian and jacobian derivative


    You have to implement the update_jacobians() method according to the following equations:

    \[ \mathbf{J}(\mathbf{q}) = \left[\begin{matrix} \\ -l_1 sin(q_1) - l_2 sin(q_1 + q_2) & -l_2 sin(q_1 + q_2)\\ l_1 cos(q_1) + l_2 cos(q_1 + q_2) & l_2 cos(q_1 + q_2)\\ \\ \end{matrix}\right] \]
    \[ \dot{\mathbf{J}}(\mathbf{q}, \dot{\mathbf{q}}) = \left[\begin{matrix} \\ -l_1 cos(q_1) \dot{q}_1 - l_2 cos(q_1 + q_2) \dot{q}_1 & -l_2 cos(q_1 + q_2) \dot{q}_2\\ -l_1 sin(q_1) \dot{q}_1 - l_2 sin(q_1 + q_2) \dot{q}_1 & -l_2 sin(q_1 + q_2) \dot{q}_2\\ \\ \end{matrix}\right] \]
    // Method to update jacobian and jacobian derivative
    void update_jacobians()
    {
        // Placeholder for jacobian and jacobian_derivative matrices

        // Calculate J(q)
        jacobian_ << 0,0,
            0,0;

        // Calculate J'(q,q')
        jacobian_derivative_ << 0,0,
            0,0;

        RCLCPP_INFO(this->get_logger(), "Jacobian:\n[%.3f, %.3f]\n[%.3f, %.3f]",
                    jacobian_(0, 0), jacobian_(0, 1),
                    jacobian_(1, 0), jacobian_(1, 1));

        double det = jacobian_.determinant();
        RCLCPP_INFO(this->get_logger(), "Jacobian determinant: %.6f", det);
    }

  4. 📝 Once \(\mathbf{J}(\mathbf{q})\) has been computed, the controller can compute the cartesian_velocities_ (\(\mathbf{x}\)) using the first-order differential kinematics (i.e., the Jacobian):

    cartesian_velocities_ = differential_kinematics(); // Calculate Cartesian velocity with first-order differental kinematics


    You need to implement the differential_kinematics() method according to the following equations:

    \[ \dot{\mathbf{x}} = \mathbf{J}(\mathbf{q}) \dot{\mathbf{q}} \]
    // Method to calculate Cartesian velocity with the first-order differential kinematics
    Eigen::MatrixXd differential_kinematics()
    {
        // Placeholder for first-order differential kinematics
        Eigen::VectorXd x_dot(2);
        x_dot << 0,0;

        return x_dot;
    }

  5. 📝 Once we have all the required data, we can compute de desired_cartesian_accelerations_ (\(\ddot{\mathbf{x}}_d\)) according to the desired impedance behavior with the method impedance_controller():

    desired_cartesian_accelerations_ = impedance_controller(); // Calculate desired cartesian accelerations with impedance controller


    You can compute the desired cartesian accelerations according to the second-order impedance model:

    \[ \mathbf{M} \ddot{\mathbf{\~{x}}} + \mathbf{B} \dot{\mathbf{\~{x}}} + \mathbf{B} \mathbf{\~{x}} = \mathbf{f}_{ext} \]

    Hence, if we assume that the only contribution to the motion of the robot is that given by the mechanical impedance model:

    \[ \ddot{\mathbf{x}}_d = \mathbf{M}^{-1}( -\mathbf{B} \dot{\mathbf{\~{x}}} - \mathbf{B} \mathbf{\~{x}} + \mathbf{f}_{ext}) \]

    where

    \[ \begin{split} \mathbf{\~{x}} &= \mathbf{x} - \mathbf{x}_d\\ \dot{\mathbf{\~{x}}} &= \dot{\mathbf{x}} - \dot{\mathbf{x}}_d \end{split} \]
    // Method to compute the impedance controller
    Eigen::VectorXd impedance_controller()
    {
        // Placeholder for impedance controller calculation
        Eigen::VectorXd x_dot_d = Eigen::VectorXd::Zero(2); // We assume desired cartesian velocity = 0

        // Calculate Cartesian errors
        Eigen::VectorXd x_error << 0,0;
        Eigen::VectorXd x_dot_error << 0,0;

        // Replace with actual impedance controller equation: x'' = M^(-1)[F_ext - k x_error - B x'_error]
        Eigen::VectorXd x_ddot(2);
        x_ddot << 0,0;

        return x_ddot;
    }

  6. 📝 Now, we can calculate the desired_joint_accelerations with the second-order differential kinematics

    desired_joint_accelerations_ = calculate_desired_joint_accelerations(); // Calculate the desired_joint_accelerations


    The second-order differential kinematics can be calculated as:

    \[ \begin{split} \ddot{\mathbf{x}} &= \mathbf{J}(\mathbf{q}) \ddot{\mathbf{q}} + \dot{\mathbf{J}}(\mathbf{q}, \dot{\mathbf{q}}) \dot{\mathbf{q}}\\ \ddot{\mathbf{q}} &= \mathbf{J}(\mathbf{q})^{-1}[\ddot{\mathbf{x}} - \dot{\mathbf{J}}(\mathbf{q}, \dot{\mathbf{q}}) \dot{\mathbf{q}}] \end{split} \]
    // Method to calculate joint acceleration with the inverse of second-order differential kinematics
    Eigen::VectorXd calculate_desired_joint_accelerations()
    {
        // Placeholder for the second-order differential kinematics
        // q'' = J(q)^(-1)[x'' - J'(q,q')q']

        RCLCPP_INFO(this->get_logger(), "x_ddot: [%.3f, %.3f]",
                    desired_cartesian_accelerations_(0), desired_cartesian_accelerations_(1));

        q_ddot << 0,0;

        return q_ddot;
    }

  7. 🔒 Finally, the controller checks that the accelerations are calculated correctly before publishing the data

    if ((desired_joint_accelerations_.array().isNaN()).any())
    {
        RCLCPP_ERROR(this->get_logger(), "Computed NaN in desired_joint_accelerations. Skipping publish.");
        return;
    }

    // Publish data
    publish_data();


As we did in Lab 3, you also need to create the impedance_controller_launch.py:

Show the code
impedance_controller_launch.py
    import os
    from launch import LaunchDescription
    from launch_ros.actions import Node
    from ament_index_python.packages import get_package_share_directory

    def generate_launch_description():
        config = os.path.join(
            get_package_share_directory('uma_arm_control'),
            'config',
            'impedance_params.yaml'
        )

        impedance_controller_node = Node(
                package='uma_arm_control',
                executable='impedance_controller',
                name='impedance_controller',
                output='screen',
                parameters=[config]
            )

        return LaunchDescription([impedance_controller_node])

Finally, you also need to modify your CMakeLists.txt:

Show the code
CMakeLists.txt
    #   Author: Juan M. Gandarias (http://jmgandarias.com)
    #   email: jmgandarias@uma.es

    cmake_minimum_required(VERSION 3.8)
    project(uma_arm_control)

    if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")
      add_compile_options(-Wall -Wextra -Wpedantic)
    endif()

    # find dependencies
    find_package(ament_cmake REQUIRED)
    find_package(rclcpp REQUIRED)
    find_package(std_msgs REQUIRED)
    find_package(geometry_msgs REQUIRED)
    find_package(sensor_msgs REQUIRED)
    find_package(Eigen3 REQUIRED)

    include_directories(${EIGEN3_INCLUDE_DIR})

    ## COMPILE
    add_executable(uma_arm_dynamics src/uma_arm_dynamics.cpp)
    add_executable(gravity_compensation src/gravity_compensation.cpp)
    add_executable(dynamics_cancellation src/dynamics_cancellation.cpp)
    add_executable(impedance_controller src/impedance_controller.cpp)

    ament_target_dependencies(uma_arm_dynamics
      rclcpp
      std_msgs
      sensor_msgs
      geometry_msgs
      Eigen3
    )

    ament_target_dependencies(gravity_compensation
      rclcpp
      std_msgs
      sensor_msgs
      Eigen3
    )

    ament_target_dependencies(dynamics_cancellation
      rclcpp
      std_msgs
      sensor_msgs
      geometry_msgs
      Eigen3
    )

    ament_target_dependencies(impedance_controller
      rclcpp
      std_msgs
      sensor_msgs
      geometry_msgs
      Eigen3
    )

    if(BUILD_TESTING)
      find_package(ament_lint_auto REQUIRED)
      # the following line skips the linter which checks for copyrights
      # comment the line when a copyright and license is added to all source files
      set(ament_cmake_copyright_FOUND TRUE)
      # the following line skips cpplint (only works in a git repo)
      # comment the line when this package is in a git repo and when
      # a copyright and license is added to all source files
      set(ament_cmake_cpplint_FOUND TRUE)
      ament_lint_auto_find_test_dependencies()
    endif()

    nstall(TARGETS uma_arm_dynamics dynamics_cancellation gravity_compensation impedance_controller
      DESTINATION lib/${PROJECT_NAME}
      )

    install(DIRECTORY
      launch
      config
      DESTINATION share/${PROJECT_NAME}/
    )

    ament_package()

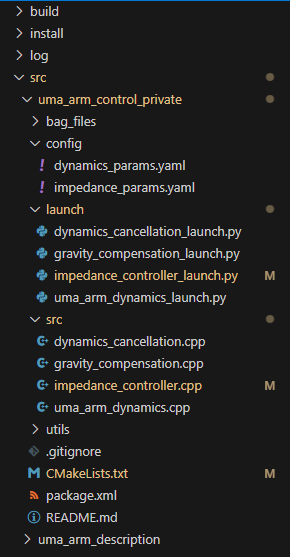

Hence, your workspace will look like this:

4.3. Experiment 1: Apply virtual forces to the robot

Note that to run the experiment you'll need to launch the following in different terminals (the order is important!):

  • UMA arm visualization:
    ros2 launch uma_arm_description uma_arm_visualization.launch.py

  • Impedance controller:
    ros2 launch uma_arm_control impedance_controller_launch.py

  • Dynamics cancellation:
    ros2 launch uma_arm_control dynamics_cancellation_external_forces_launch.py

  • External wrenches publisher:
    cdw
    cd src/uma_arm_control/utils
    python3 wrench_trackbar_publisher.py

  • UMA arm dynamics:
    ros2 launch uma_arm_control uma_arm_dynamics_launch.py

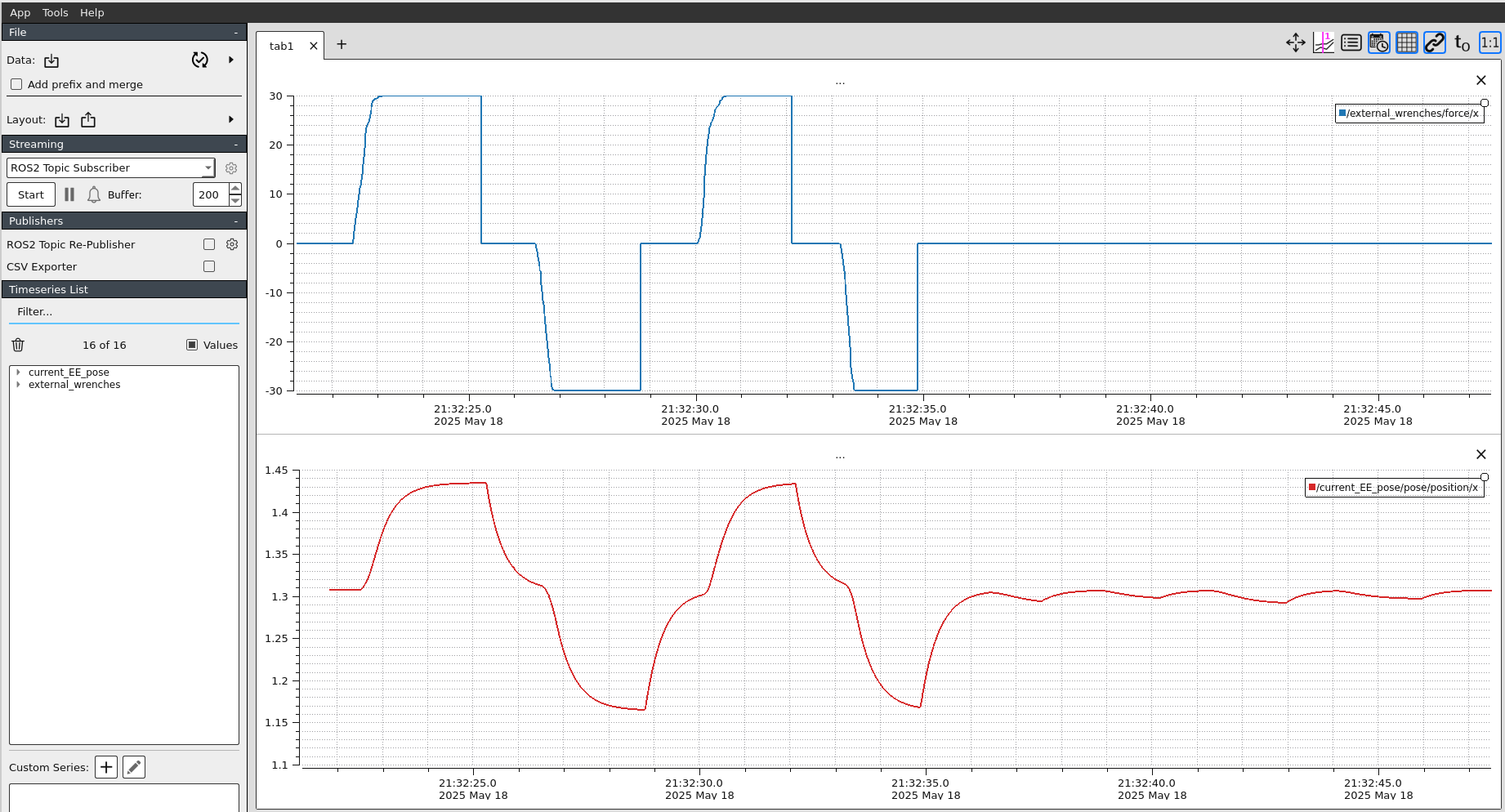

results_force_x

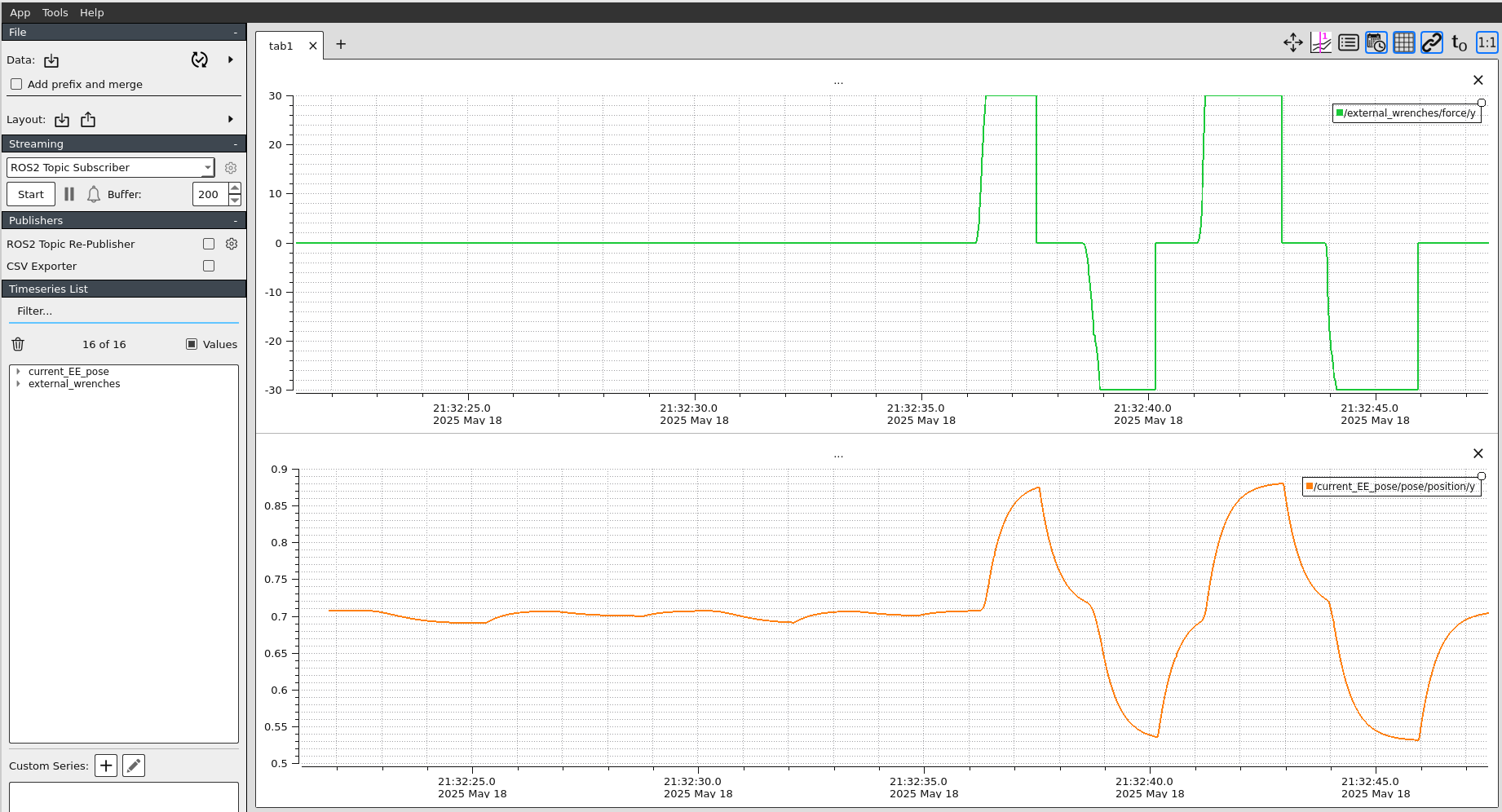

results_force_y

*Note that the video and the plots correspond to different experiments.

Question

  • What are the effects of changing the impedance parameters (M, B, K) in the impedance_params.yaml file?
  • What are the effects of having a "high impedance" in axis X and "low impedance" in axis Y?

Question

  • Does the forces applied in the X axis generate motions in the Y axis? And does the forces applied in the Y axis generate motions in the X axis?
  • Can you explain why applying forces in one axis generate motions in the other axis?
  • How do you think this phenomena can be mitigated?
  • [OPTIONAL] Eliminate this undesired behavior to get results similar to the images below:

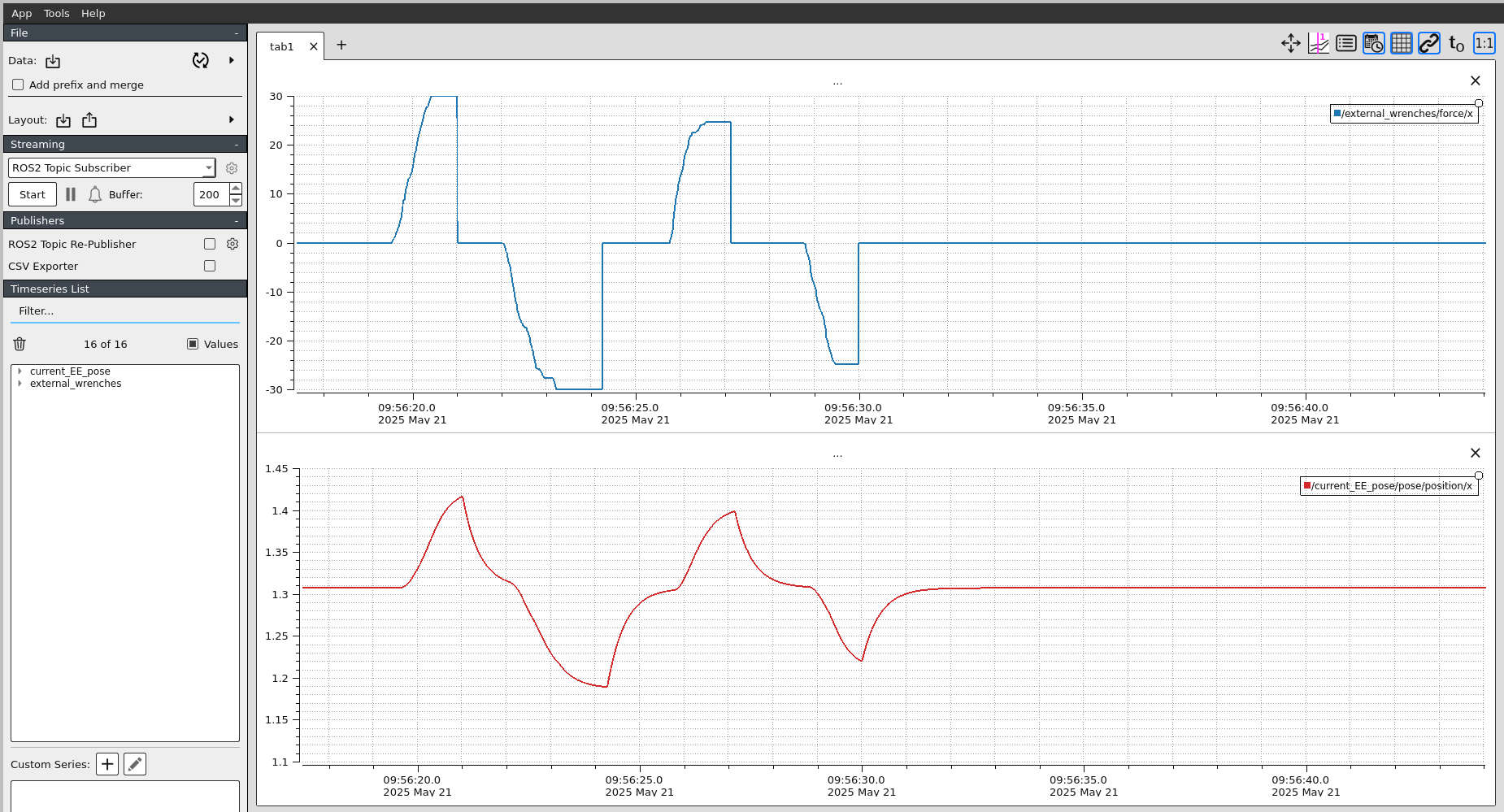

results_force_x_good_cancellation

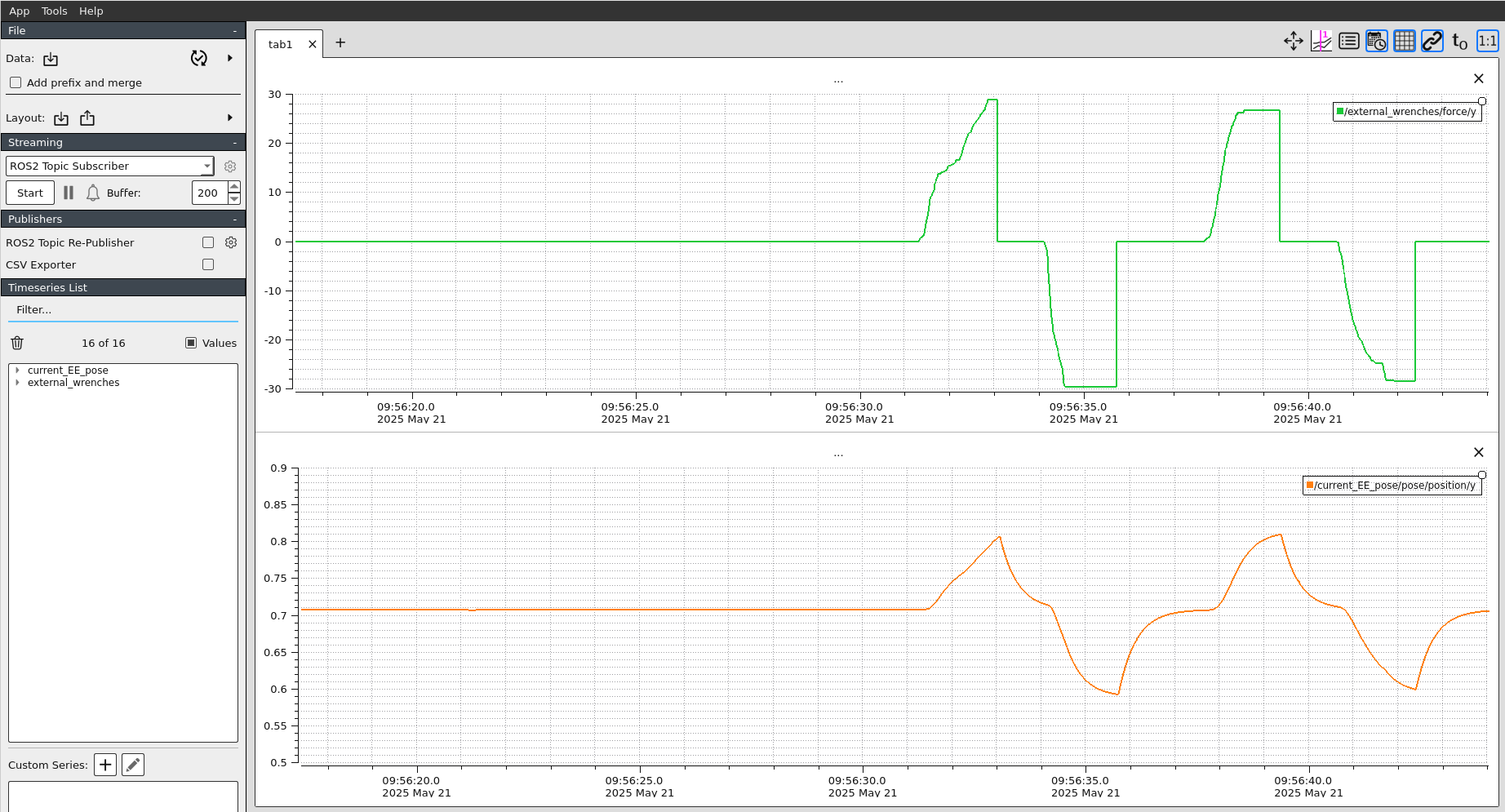

results_force_xygood_cancellation

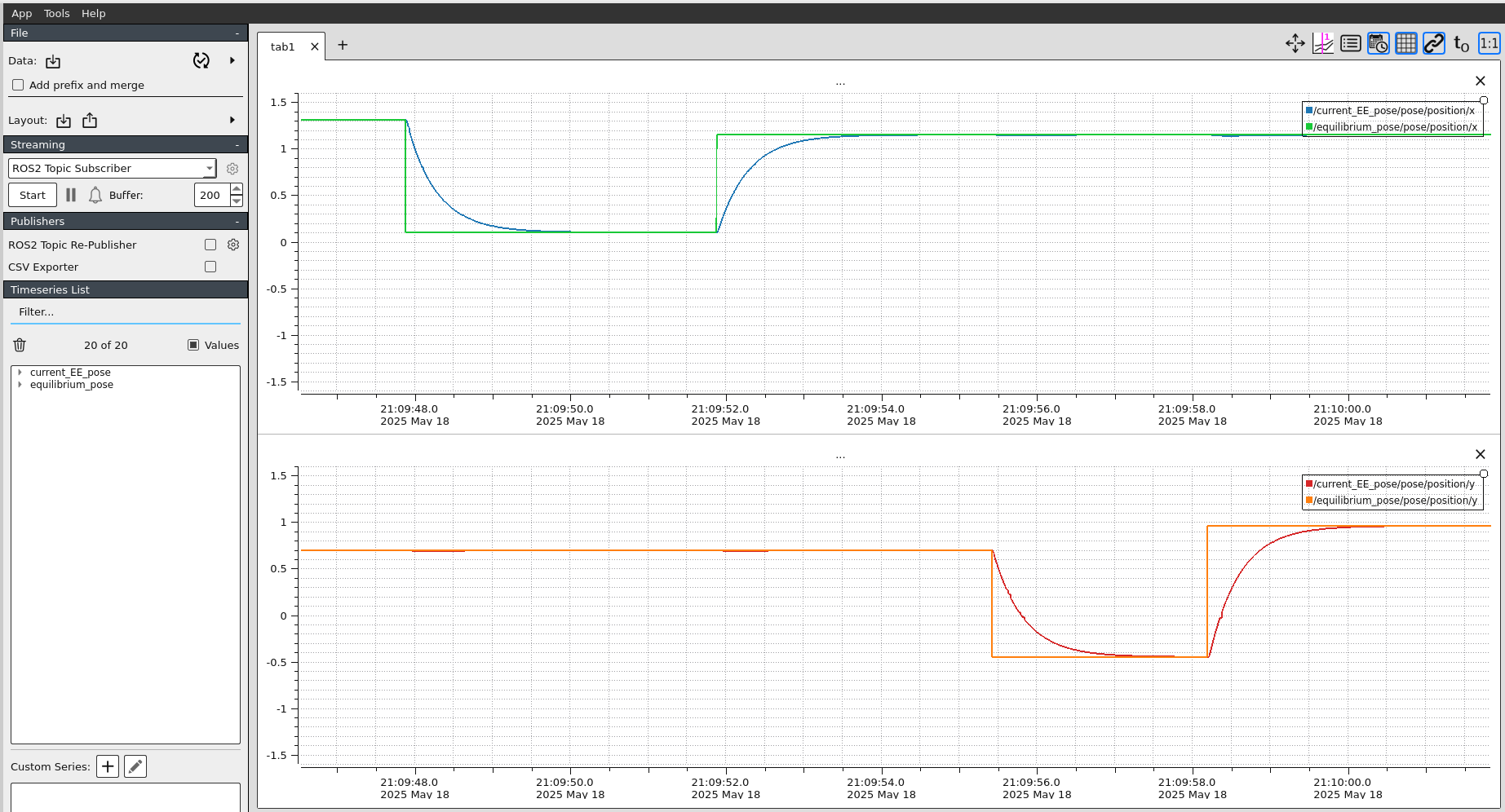

4.4. Experiment 2: Change the equilibrium pose

To carry out this experiemnt, you'll need to use the equilibrium_pose_publisher.py (please, be sure that you're using the code below. You might have an outdated version of this script in your workspace)

Show the code
equilibrium_pose_publisher.py
    #!/usr/bin/python3

    import rclpy
    from rclpy.node import Node
    from geometry_msgs.msg import PoseStamped
    import tkinter as tk
    import threading

    class EquilibriumPosePublisher(Node):
        def __init__(self):
            super().__init__('equilibrium_pose_publisher')
            self.publisher_pose = self.create_publisher(PoseStamped, 'equilibrium_pose', 10)

            # Initial pose values
            self.current_pose_x = 1.3071
            self.current_pose_y = 0.701
            self.pending_pose_x = self.current_pose_x
            self.pending_pose_y = self.current_pose_y

            # Create GUI
            self.root = tk.Tk()
            self.root.title("Equilibrium Pose Publisher")

            self.slider_x = self.create_trackbar('Pose X', -1.6, 1.6, self.update_pending_pose_x)
            self.slider_y = self.create_trackbar('Pose Y', -1.6, 1.6, self.update_pending_pose_y)

            self.slider_x.set(self.pending_pose_x)
            self.slider_y.set(self.pending_pose_y)

            publish_button = tk.Button(self.root, text="Publish Equilibrium Pose", command=self.update_current_pose)
            publish_button.pack(pady=10)

            # Start publishing timer (300 Hz)
            self.create_timer(1.0 / 300.0, self.publish_equilibrium_pose)

        def create_trackbar(self, label, min_val, max_val, callback):
            frame = tk.Frame(self.root)
            frame.pack()
            tk.Label(frame, text=f"{min_val}").pack(side=tk.LEFT)
            trackbar = tk.Scale(frame, label=label, from_=min_val, to=max_val, orient=tk.HORIZONTAL,
                                command=callback, resolution=0.01, length=400, sliderlength=30)
            trackbar.pack(side=tk.LEFT)
            tk.Label(frame, text=f"{max_val}").pack(side=tk.LEFT)
            return trackbar

        def update_pending_pose_x(self, value):
            self.pending_pose_x = float(value)

        def update_pending_pose_y(self, value):
            self.pending_pose_y = float(value)

        def update_current_pose(self):
            self.current_pose_x = self.pending_pose_x
            self.current_pose_y = self.pending_pose_y
            self.get_logger().info(f'Updated pose to: X = {self.current_pose_x}, Y = {self.current_pose_y}')

        def publish_equilibrium_pose(self):
            msg = PoseStamped()
            msg.header.stamp = self.get_clock().now().to_msg()
            msg.header.frame_id = "base_link"
            msg.pose.position.x = self.current_pose_x
            msg.pose.position.y = self.current_pose_y
            msg.pose.position.z = 0.0
            msg.pose.orientation.x = 0.0
            msg.pose.orientation.y = 0.0
            msg.pose.orientation.z = 0.0
            msg.pose.orientation.w = 1.0
            self.publisher_pose.publish(msg)

        def run(self):
            # Start ROS spinning in a background thread
            ros_thread = threading.Thread(target=rclpy.spin, args=(self,), daemon=True)
            ros_thread.start()

            # Start the GUI main loop
            self.root.mainloop()

    def main(args=None):
        rclpy.init(args=args)
        node = EquilibriumPosePublisher()
        try:
            node.run()
        except KeyboardInterrupt:
            pass
        finally:
            node.destroy_node()
            rclpy.shutdown()

    if __name__ == '__main__':
        main()

Note that to run the experiment you'll need to launch the following in different terminals (the order is important!):

  • UMA arm visualization:
    ros2 launch uma_arm_description uma_arm_visualization.launch.py

  • Impedance controller:
    ros2 launch uma_arm_control impedance_controller_launch.py

  • Dynamics cancellation:
    ros2 launch uma_arm_control dynamics_cancellation_external_forces_launch.py

  • External wrenches publisher:
    cdw
    cd src/uma_arm_control/utils
    python3 wrench_trackbar_publisher.py

  • Equilibrium pose publisher:
    cdw
    cd src/uma_arm_control/utils
    python3 equilibrium_pose_publisher.py

  • UMA arm dynamics:
    ros2 launch uma_arm_control uma_arm_dynamics_launch.py


results_EE_pose

*Note that the video and the plots correspond to different experiments.

Question

  • Play with the simulation by publishing different desired equilibrium poses. Test the simulation to the extreme by taking the robot to difficult joint configurations. Don't worry about the robot, it's just a simulation and it won't break :)

  • Did you find that the robot makes strange or unwanted motions, can you report them and explain why it happens?
